Product name: MGC Series Torque Tool
Category: Torque tool Product model: MGC
MGC Series torque wrench ：
Professional digital torque wrench breaks through the problem that traditional torque tools cannot determine the amount of torque to be applied, and has functions such as displaying torque warning values, memory data and transmission. This skill allows the operator to precisely control the tightening torque value of the wrench, which is very suitable for factory production. Full inspection and quantitative inspection quality analysis to improve production quality and reasonable price.
Gallery ：
Features：
The ratchet head can be replaced into the required form
Versatile and simple operation: preset torque value, unit setting, mode setting, memory storage,
memory clear, data upload, network correction……. Various functions
Display indicators ：

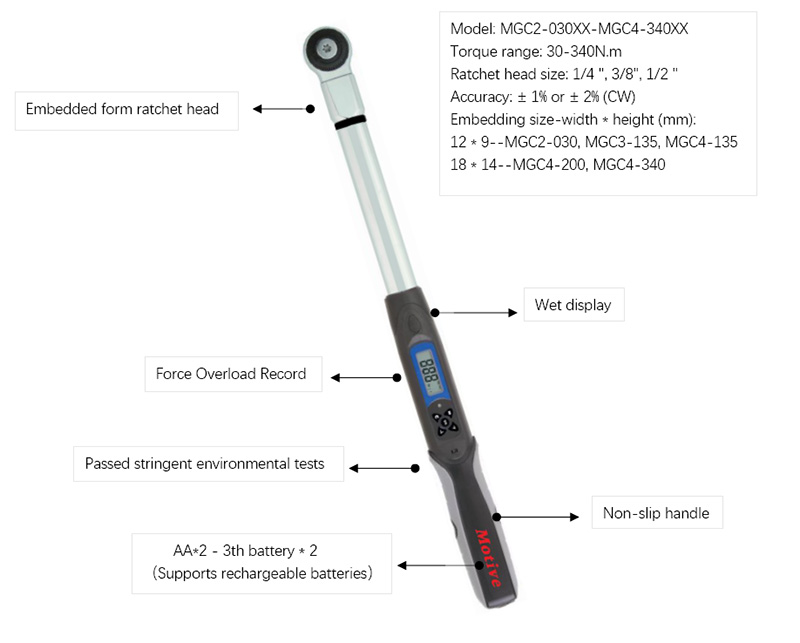

names and functions of parts：
Specifications：
MODEL*1 | MGC4-135 | MGB4-200 | MGC4-340 |
BN | BN | BN | |
Accuracy*2 | CW: ±2% | CW: ±2% | CW: ±2% |
Maximum torque value | 135N.m | 200N.m | 340N.m |
Torque test range | 6.8-135N.m | 10-200N.m | 17-340N.m |
Guaranteed accuracy range | 27-135N.m | 40-200N.m | 68-340N.m |
Resolution | 0.1N.m | 0.1N.m | 0.1N.m |
LED warning light | 1Red | 1Red | 1Red |
Operation mode | Peak hold (P) / follow mode (T) | Peak hold (P) / follow mode (T) | Peak hold (P) / follow mode (T) |
Unit selection | N.m in.lb ft.lb | N.m in.lb ft.lb | N.m in.lb ft.lb |
Wrench length(mm) | 410 | 545 | 640 |
Ratchet square head (inches) | 1/2 | 1/2 | 1/2 |
Head special device | Interchangeable head form ratchet head | Interchangeable head form ratchet head | Interchangeable head form ratchet head |
Number of ratchet teeth | 52 | 52 | 52 |
Embedding size-width * height (mm) | 12*9 | 18*14 | 18*14 |
Data storage capacity | 50 | 50 | 50 |
Communication transmission function*3 | NO | NO | NO |
Number of keys | 5 | 5 | 5 |
Battery * 4 | AA×2 | AA×2 | AA×2 |
Operating temperature | -10℃~60℃ | -10℃~60℃ | -10℃~60℃ |
Storage temperature | -20℃~70℃ | -20℃~70℃ | -20℃~70℃ |
Humidity | Up to 90% without condensation | Up to 90% without condensation | Up to 90% without condensation |
Drop test | 1 meter | 1 meter | 1 meter |
Vibration test*5 | 10g | 10g | 10g |
Wrench life test*6 | 10000 | 10000 | 10000 |
Environmental test*7 | PASS | PASS | PASS |
Electromagnetic compatibility test*8 | PASS | PASS | PASS |
1：Product name selection guidelines
2：The accuracy guarantee range is 20-100% of the maximum range, and the last digit is not included. Torque accuracy is a typical value. The middle groove on the grip is the calibration point. To ensure accuracy, it is recommended to calibrate once a year.
3：Use a special RS232 cable (accessory) to send data to the computer
4：Two AA batteries (Toshiba R6UG carbon zinc battery)
5：Horizontal and vertical test
6："One time" refers to pushing the wrench from 0N.m to the maximum marked value of the wrench, and then back to 0N.m
7：Environmental test:
a. High temperature test,
b. Low temperature test,
c. High temperature and high humidity test
d. temperature change test,
e. impact test, f. vibration test, g. drop test
8：Electromagnetic compatibility test:
a. Electrostatic test (ESD),
b. Radiation tolerance (RS),
c. Radiation measurement (RE)
Ordering Information：
| Capacity & Resolution | ||||
Model | Capacity | Indication | Resolution | US Price | |
MGC4-135 | 135N.m | 135N.m(99.5ft.lb/1195in.lb) | 1N.m(1in.lb/0.1ft.lb) | 290 | |
MGC4-200 | 200N.m | 200N.m(147.5ft.lb/1770in.lb) | 1N.m(1in.lb/0.1ft.lb) | 310 | |
MGC4-340 | 340N.m | 340N.m(250.7ft.lb/3009in.lb) | 1N.m(1in.lb/0.1ft.lb) | 330 | |
Dimensions(mm) ：
135N.m
200N.m
340N.m
